Huayan manufactures a wide range of customized PET Preform Injection Molding System and preform molds, which can be applied in the industry of food and beverages, edible oil, pharmaceutics and cosmetics, etc.
Item No :
Epioneer600PETOrder(MOQ) :
1 SETPayment :
TTProduct Origin :
CHINAShipping Port :
GUANGZHOUIntroduction
The Epioneer series high-end direct-clamping PET Preform Injection Machines are designed for high-efficiency production, low-cost operation, and feature an intelligent operating system.
The machines are equipped with an independent preform-blowing cooling station, and a dual-drive, 4-position cooling robot, which enhances preform cooling efficiency by 35%. The centralized direct-clamping structure provides strong protection for the preform mold and is compatible with molds up to 176 cavities.
This PET Preform Injection System series comprehensively optimizes the injection molding process, effectively reducing operational costs for customers at every stage.
Specification
| Model No. | Epioneer 600PET | ||
| Injection Unit | Plunger Diameter | mm | 160 |
| Screw Diameter | mm | 150 | |
| Length/Diameter Ratio | L/D | 30 | |
| Theoretical shot Volume (Max) | cm3 | 12861 | |
| Shot Weight | g | 14790 | |
| Shot Weight | oz | 521 | |
| Injection Pressure | kgf/cm2 | 1015 | |
| Outer Dimensions(LxWxH) | m | 16*5.9*3.4 | |
| Clamping Unit | Clamping Force | ton | 600 |
| Clamping Stroke | mm | 750 | |
| Mold Thickness(Min/Max) | mm | 600-1200 | |
| Tie Bar Space (WxH) | mm | 1100*1600 | |
| Ejecting Stroke | mm | 200 | |
| Ejecting Force | ton | 91 | |
| Ejector Count | piece | 13 | |
| The Highest System Pressure | kgf/cm2 | 180 | |
| Preform Mold | Cavity (Max.) | piece | 176 |
| Neck Size（Max.） | mm | 42 | |
| Preform Length （Max.） | mm | 200 | |
| Preform Weight (Max.) | g | 23 | |
| Hot Runner |
Pneumatic Valve-gated Hot Runner Mold
|
||
| Electrical Unit | Oil Pump Motor Power | kw | 75①+220+2.8 |
| Robot Cooling Station | piece | 176 | |
| Mold Heating | kw | 139 | |
| Machine Heating | kw | 313 | |
| Robot Power | kw | 121 | |
| Automatic Pick Up | Robot Multi-station Cooling Device | cav | 576 |
| General Requirements | Power Supply | V | 380 |
| kva | 870 | ||
| Chilling Water |
℃
|
8-12 | |
| Mpa | 0.8 | ||
| L/Min | 1200 | ||
| Cooling Water | ℃ |
＜25
|
|
| Mpa | 0.3 | ||
| L/Min | 400 | ||
Application

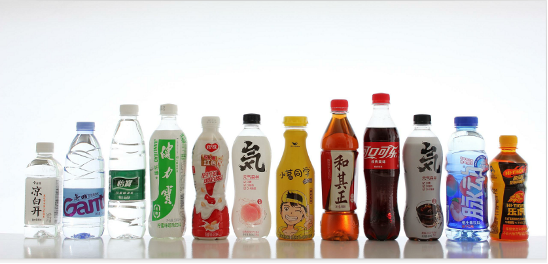

Water & Beverage

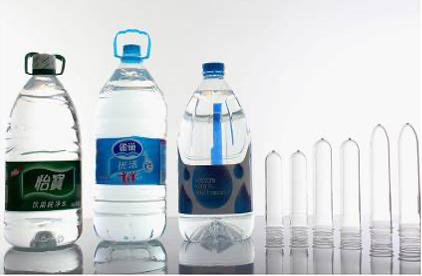

PET Preforms for Big Water Bottle

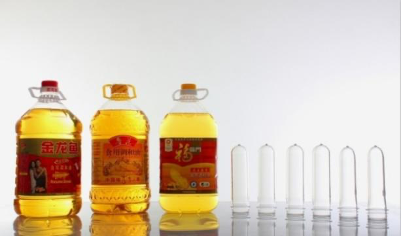

Edible Oil & Soya Sauce

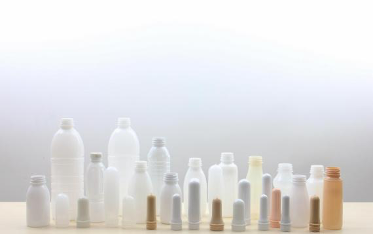

Milk Products

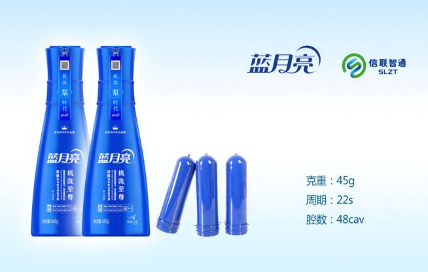

Personal Care & Household Chemicals
